RZ-001 · Long-sleeve rashguard

The spec

Code

RZ-001

Cut

Rashguard, long sleeve

Cloth

Warp-knit tricot, black

Size

L

Made

50

Designed

New York

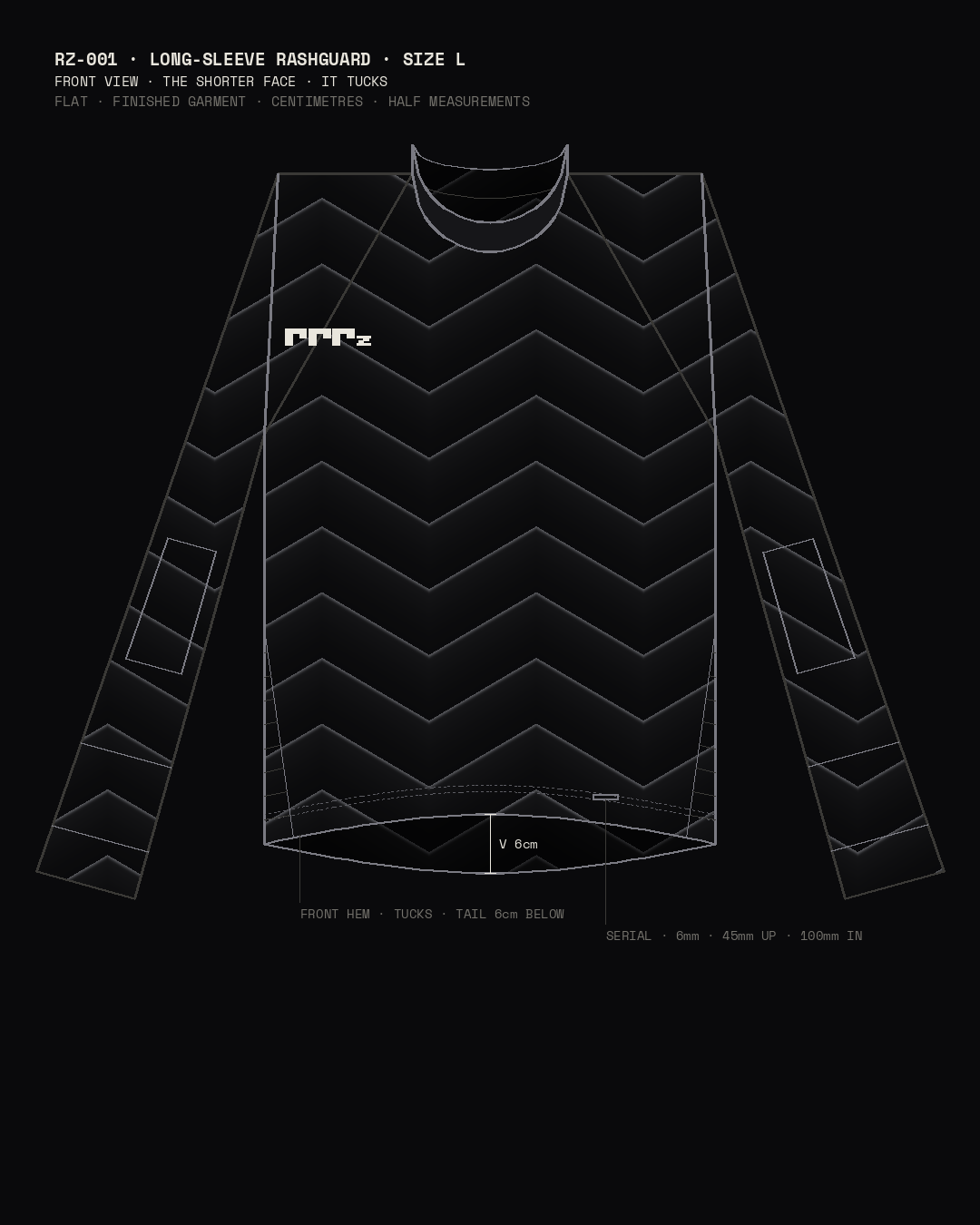

Size L, laid flat

Chest

93 cm around, 25 mm below the armhole

Waist

93 cm around, 400 mm below the shoulder

Hem

93 cm around, relaxed

Body

72 cm shoulder to hem, centre back

Sleeve

64 cm shoulder point to cuff

Shoulder

46.5 cm seam to seam across the back

Fitted through the chest and arms, released at the waist and hem. If you wear L in your rashguard, you wear L in this.

The cloth and the neck

Main fabric

92% polyester / 8% elastane, warp-knit tricot. Recycled polyester preferred and stated if supplied.

Weight

250-280 gsm

Neck

Moc neck, 30 mm finished stand. No collar.

For the factory

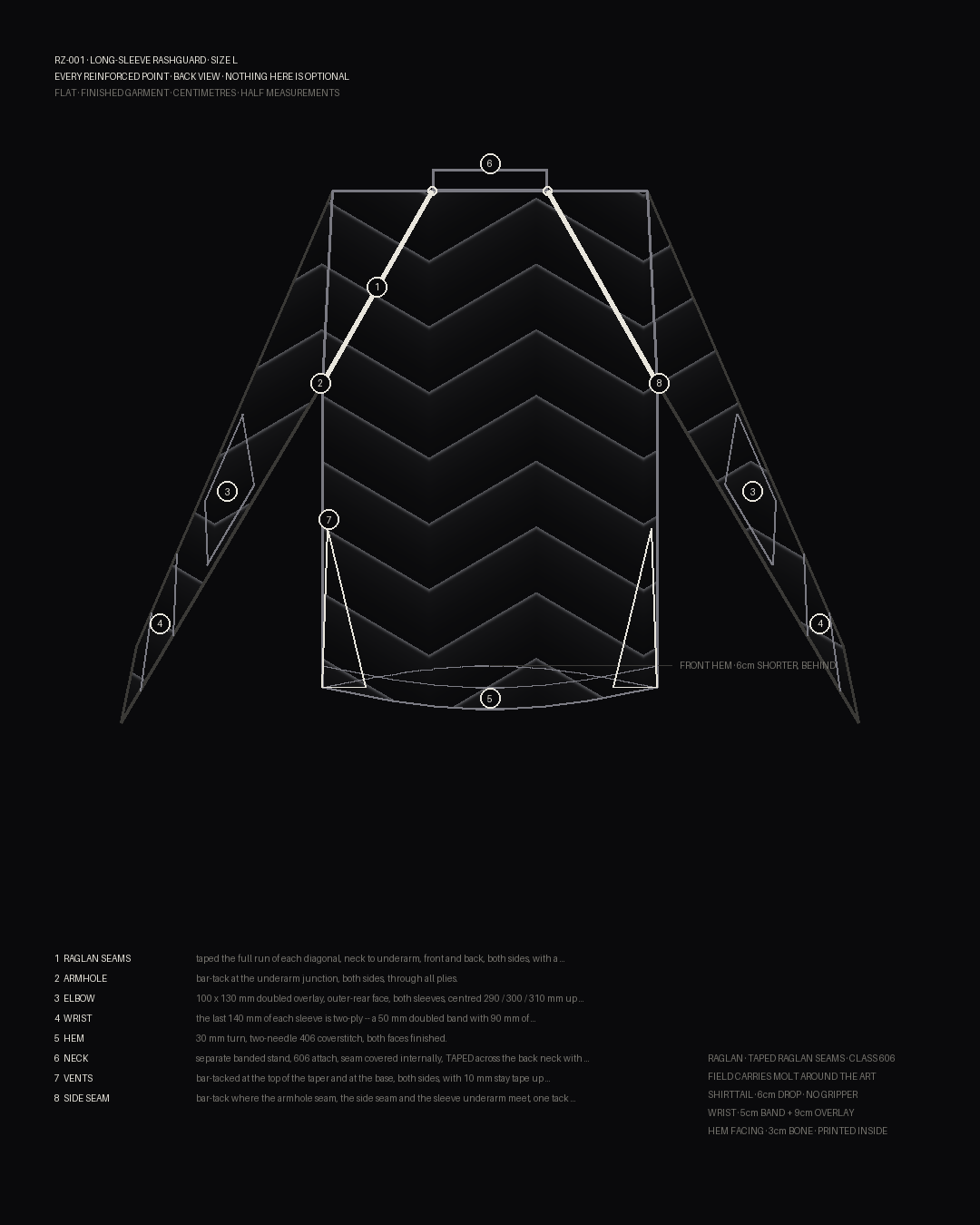

Every mark

H3 The serial

6 mm · 15% · 45 mm · 100 mm

H4 The sleeve call

10.5 mm · 99 mm · 365 / 375 / 385 mm · 10 mm

H5 Hem tab

15 x 40 mm · 15 x 20 mm

H6 The machine

57.9% · 291.4 mm · 3:4 · 142.8 mm · ±6 · ±8

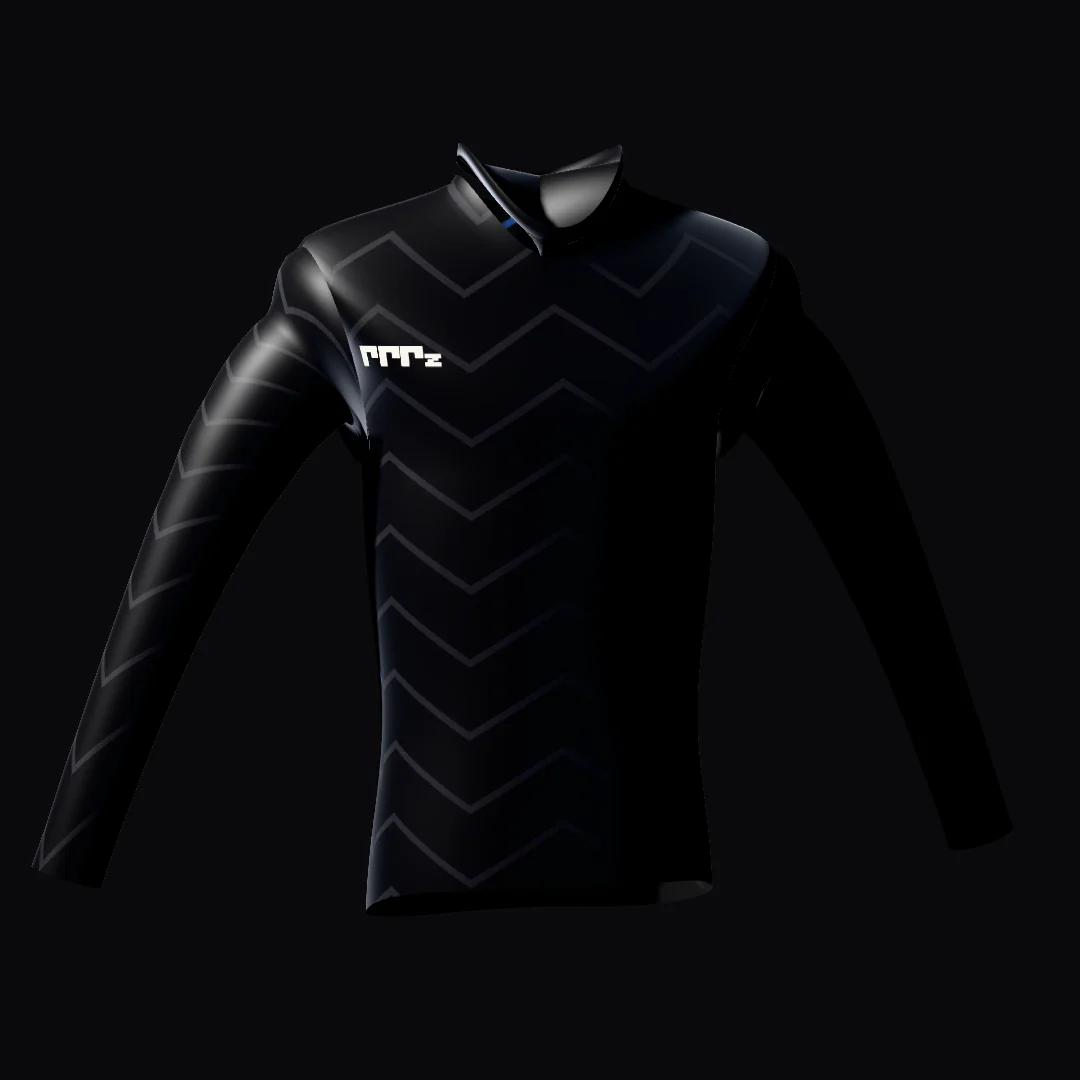

H7 The chest mark

88 mm · 166.1 mm · 159 mm

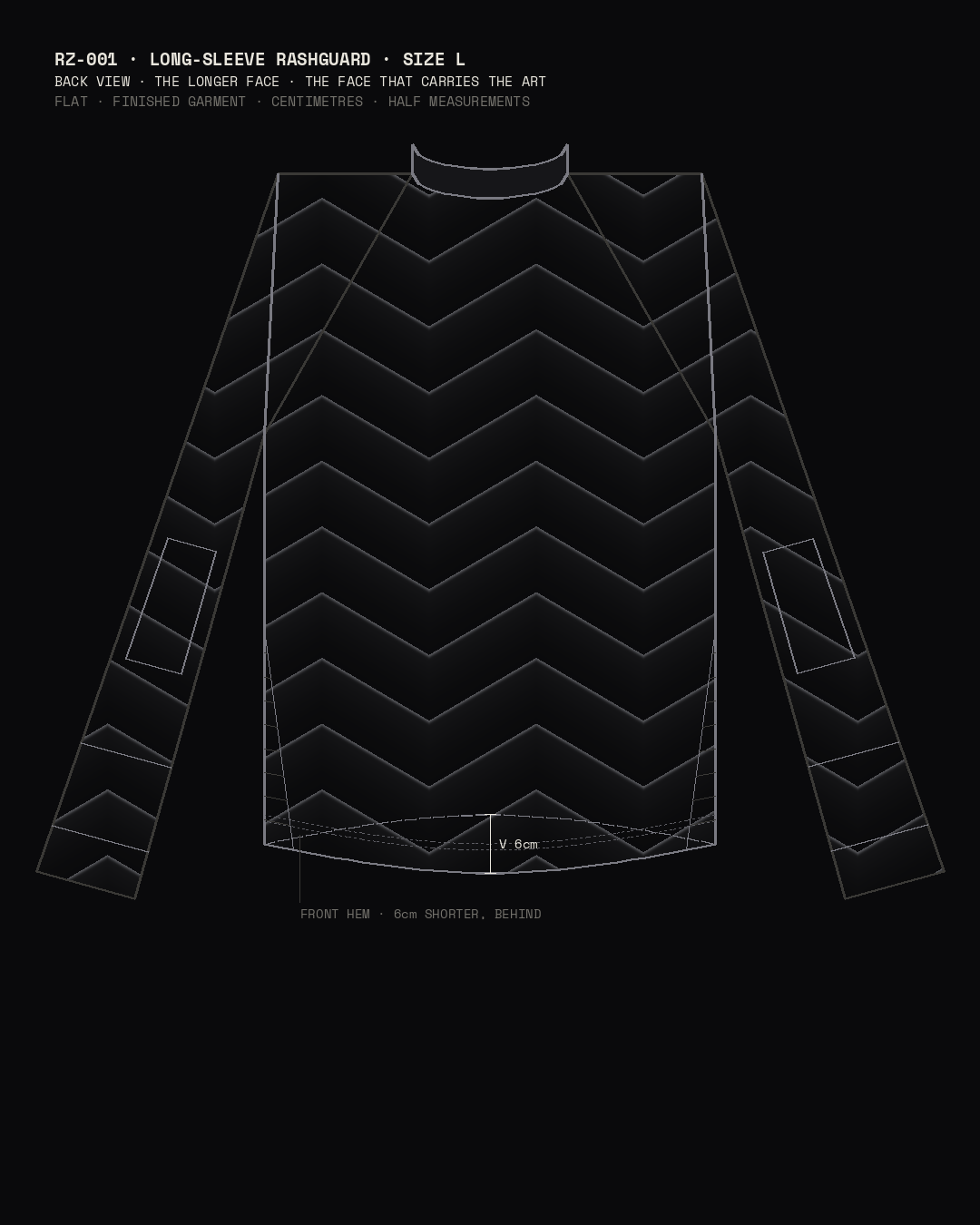

Measured flat

RZ-001 points of measure, centimetres, by size

Point	M	L	XL
A Chest, 25 mm below armhole	43.36	46.36	49.36
B Waist, 400 mm below HPS	43.36	46.36	49.36
C Hem opening, relaxed	43.36	46.36	49.36
D Body length, HPS to hem at CENTRE BACK	69.75	71.75	73.75
E Across chest, 150 mm below HPS	40	42.5	45
F Sleeve length, CB neck along the sleeve top edge to the cuff edge	76.2	78.74	81.28
G Bicep, 25 mm below armhole	18.5	19.5	20.5
H Cuff opening, relaxed, at the band edge	10	10.5	11
J Neck opening, seam to seam at band base	15	16	17
K Armhole depth, HPS vertical to underarm	24.13	26.67	29.21
L Moc neck stand, finished	3	3	3
M Across back, 150 mm below HPS	41	43.5	46
N Forearm, 100 mm above cuff edge	11.5	12	12.5
P Front neck drop, HPS to band base at CF	7.5	8	8.5
Q Back neck drop, HPS to band base at CB	2	2.5	3
R Vent length, hem edge up to top of mesh	22	22	22
S Vent width across mesh at hem	6	6	6
T Elbow overlay centre, CB neck along the sleeve	47.2	48.7	50.3
U Body length, HPS to hem at CENTRE FRONT	63.75	65.75	67.75
V Drop tail, CF to CB difference	6	6	6
W Shoulder width, seam to seam across the back	44.5	46.5	48.5
X Sleeve length, shoulder point to cuff edge	62	64	66
Y Armhole, shoulder point to underarm along the seam	24.5	25.5	26.5
Z Cuff band depth, finished	5	5	5
AA Sleeve doubling above the cuff band, full circumference	9	9	9
AB Sleeve width at the elbow, at row T	15.1	15.9	16.7
AC Sleeve underarm length, armpit to cuff edge	47.53	49.53	51.53

Centimetres, garment measured flat. Drop 001 is size L only; the other columns are the pattern’s, not this run’s.
